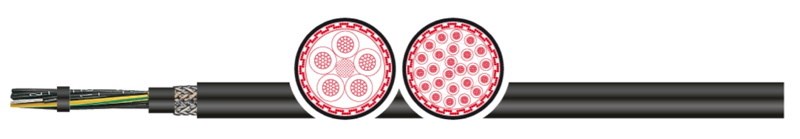

ÖPVC-YCY 0,6/1 kV

Skärmad maskinkabel

Kraft-, signal- och anslutningskabel i anläggningar för fasta och flexibla installationer utan dragspänning. Lämplig för användning i torra, fuktiga och våta miljöer. Kan även användas utomhus men får inte läggas under jord.

Art.nr.
Benämning
Ytter-Ø
Vikt
Art.nr. 42000820

ÖPVC-JZ-YCY 0,6/1 KV 7G0,75 Maskinkabel skärmad Svart

Ytter-Ø 12,8 mm Vikt 0,315 kg/m
Art.nr.
Benämning
Ytter-Ø
Vikt
Art.nr. 42000825

ÖPVC-JZ-YCY 0,6/1 KV 4G1 Maskinkabel skärmad Svart

Ytter-Ø 10,6 mm Vikt 0,198 kg/m
Art.nr.
Benämning
Ytter-Ø
Vikt
Art.nr. 42000826

ÖPVC-JZ-YCY 0,6/1 KV 7G1 Maskinkabel skärmad Svart

Ytter-Ø 13,7 mm Vikt 0,335 kg/m
Art.nr.
Benämning
Ytter-Ø
Vikt
Art.nr. 42000828

ÖPVC-JZ-YCY 0,6/1 KV 12G1 Maskinkabel skärmad Svart

Ytter-Ø 16,4 mm Vikt 0,552 kg/m
Art.nr.
Benämning
Ytter-Ø
Vikt
Art.nr. 42000830

ÖPVC-JZ-YCY 0,6/1 KV 4G1,5 Maskinkabel skärmad Svart

Ytter-Ø 12,6 mm Vikt 0,24 kg/m
Art.nr.
Benämning
Ytter-Ø
Vikt
Art.nr. 42000833

ÖPVC-JZ-YCY 0,6/1 KV 7G1,5 Maskinkabel skärmad Svart

Ytter-Ø 15,3 mm Vikt 0,383 kg/m
Art.nr.
Benämning
Ytter-Ø
Vikt
Art.nr. 42000835

ÖPVC-JZ-YCY 0,6/1 KV 12G1,5 Maskinkabel skärmad Svart

Ytter-Ø 19,2 mm Vikt 0,69 kg/m
Art.nr.
Benämning
Ytter-Ø
Vikt
Art.nr. 42000840

ÖPVC-JZ-YCY 0,6/1 KV 4G2,5 Maskinkabel skärmad Svart

Ytter-Ø 14,2 mm Vikt 0,345 kg/m
Art.nr.
Benämning
Ytter-Ø
Vikt
Art.nr. 42000842

ÖPVC-JZ-YCY 0,6/1 KV 7G2,5 Maskinkabel skärmad Svart

Ytter-Ø 17,5 mm Vikt 0,561 kg/m
Art.nr.
Benämning
Ytter-Ø
Vikt
Art.nr. 42000847

ÖPVC-JZ-YCY 0,6/1 KV 4G4 Maskinkabel skärmad Svart

Ytter-Ø 16 mm Vikt 0,527 kg/m
Art.nr.
Benämning
Ytter-Ø
Vikt
Art.nr. 42000850

ÖPVC-JZ-YCY 0,6/1 KV 4G6 Maskinkabel skärmad Svart

Ytter-Ø 17,7 mm Vikt 0,715 kg/m
Art.nr.
Benämning
Ytter-Ø
Vikt
Art.nr. 42000865

ÖPVC-JZ-YCY 0,6/1 KV 4G10 Maskinkabel skärmad Svart

Ytter-Ø 21,7 mm Vikt 0,864 kg/m
Art.nr.
Benämning
Ytter-Ø
Vikt
Art.nr. 42000870

ÖPVC-JZ-YCY 0,6/1 KV 4G16 Maskinkabel skärmad Svart

Ytter-Ø 25,2 mm Vikt 1,184 kg/m
Art.nr.
Benämning
Ytter-Ø
Vikt
Art.nr. 42000872

ÖPVC-JZ-YCY 0,6/1 KV 4G25 Maskinkabel skärmad Svart

Ytter-Ø 29,8 mm Vikt 1,792 kg/m
Art.nr.
Benämning
Ytter-Ø
Vikt
Art.nr. 42000875

ÖPVC-JZ-YCY 0,6/1 KV 4G35 Maskinkabel skärmad Svart

Ytter-Ø 32,7 mm Vikt 2,495 kg/m
Art.nr.
Benämning
Ytter-Ø
Vikt
Art.nr. 42000878

ÖPVC-JZ-YCY 0,6/1 KV 4G70 Maskinkabel skärmad Svart

Ytter-Ø 46 mm Vikt 5,467 kg/m
Material ledare
Koppar
Klassificering ledare
Enligt IEC 60228 kl. 5
Isolering ledare
PVC
Identifikation ledare
Enligt DIN VDE 0293 svarta ledare med vita nummer. G: med GNYE
Resistans ledare
Enligt IEC 60228 cl. 5
Resistans isolering
min. 20 Mohm x km
Ledaruppbyggnad
Placerade i lager
Ytterhölje material
PVC
Ytterhölje färg
Svart RAL 9005
Skärmad
Förtennad kopparfläta, täckning ca 85%
Märkspänning
Uo/U: 0,6/1 kV
Testspänning
4 kV
Max märkström
Enligt DIN VDE
Minsta böjradie fast installation
6 x d
Minsta böjradie rörlig installation
15 x d
Temperaturområde fast [°C]
-40 °C till +80 °C
Temperaturområde rörlig [°C]
-15 °C till +70 °C
Max ledartemperatur [°C]
+70 °C i drift; +160°C vid kortslutning
Standarder
Liknande EN 50525-2-51
Brandspridningsklass
Självsläckande och flamsäker enligt IEC 60332-1
RoHS kompatibel
Ja
Övriga anmärkningar
Överensstämmer med 2014/35/EU-riktlinjer ("Low-Voltage Directive") CE
