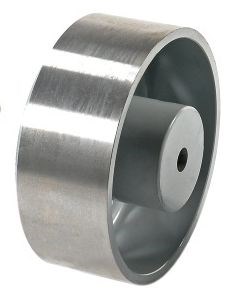

PD.500 Bromstrumma

Bromstrumma med diameter 500 mm

Art.nr.
Benämning
Art.nr. 22007035

PD.500.SB BROMSTRUMMA, BORRAD H7, KILSPÅR UNI 6604 H7, DYNAMISKT BALAN

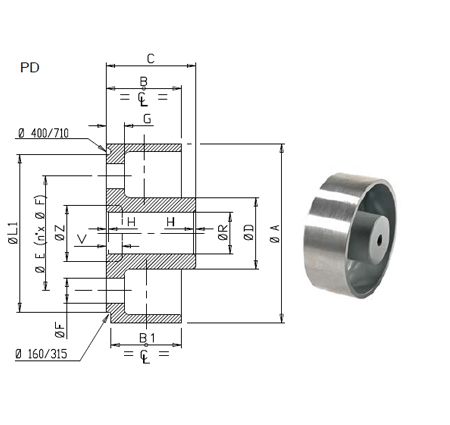

Storlek trumma/skiva, Ø A
500
Moment max [Nm]
11020
Material
Model in grey cast iron UNI EN 1561, EN-GJL-250 (M)/Model in spheroidal cast iron UNI EN 1563, EN-GJS-500-7 (S)
Hål
Hub with R cylindrical hole bored H7 and with keyway UNI 6604 H7 (L) / Hub with R cylindrical hole bored H7, with keyway UNI 6604 H7 and dynamically balanced Brakedrum (B)
