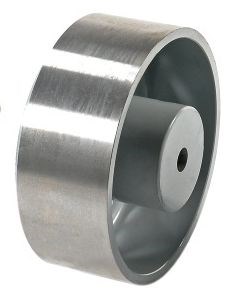

PD.400 Bromstrumma

Bromstrumma med diameter 400 mm

Art.nr.
Benämning
Art.nr. 22007031

PD.400.SL BROMSTRUMMA, BORRAD H7, KILSPÅR UNI 6604 H7

Art.nr.
Benämning
Art.nr. 22007032

PD.400.SB BROMSTRUMMA, BORRAD H7, KILSPÅR UNI 6604 H7, DYNAMISKT BALAN

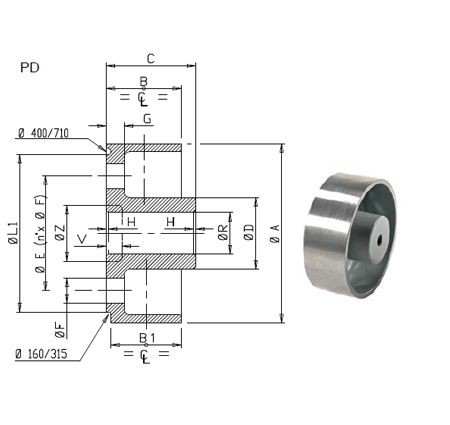

Storlek trumma/skiva, Ø A
400
Moment max [Nm]
5320
Material
Model in grey cast iron UNI EN 1561, EN-GJL-250 (M)/Model in spheroidal cast iron UNI EN 1563, EN-GJS-500-7 (S)
Hål
Hub with R cylindrical hole bored H7 and with keyway UNI 6604 H7 (L) / Hub with R cylindrical hole bored H7, with keyway UNI 6604 H7 and dynamically balanced Brakedrum (B)
