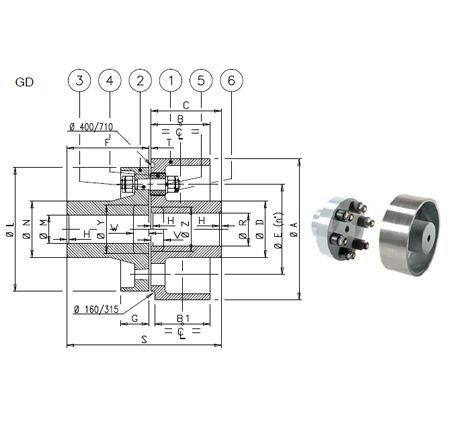

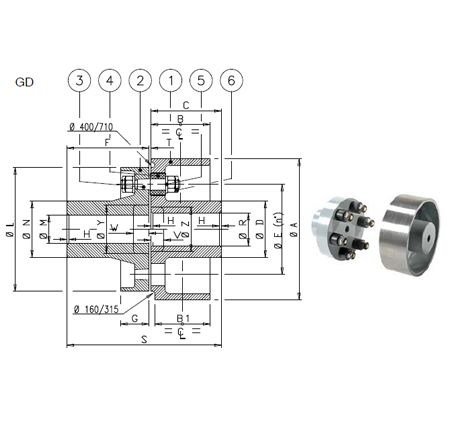

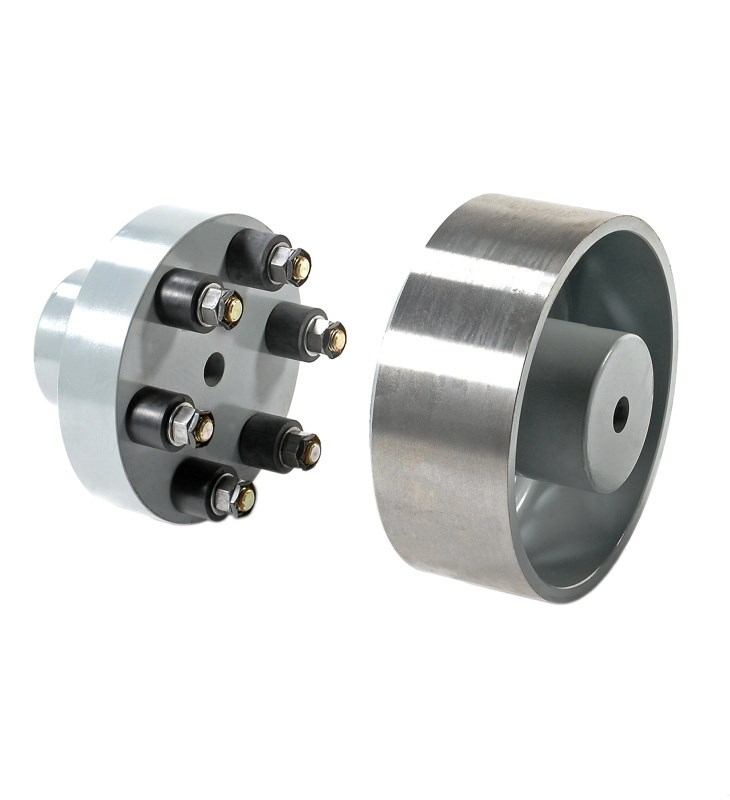

GD.400 Bromstrumma

Bromstrumma med diameter 400 mm, inklusive koppling.

Art.nr.
Benämning
Art.nr. 22007096

GD.400.2.SG BROMSTRUMMA MED KOPPLING, PILOTBORRAD

Art.nr.
Benämning
Art.nr. 22007097

GD.400.2.SL BROMSTRUMMA MED KOPPLING, BORRAD H7, KILSPÅR UNI 6604 H7

Art.nr.
Benämning
Art.nr. 22007098

GD.400.2.SB BROMSTRUMMA MED KOPPLING, BORRAD H7, KILSPÅR UNI 6604 H7,

Storlek trumma/skiva, Ø A
400
Moment max [Nm]
5320
Material
Model in spheroidal cast iron UNI EN 1563, EN-GJS-500-7 (S)
Hål
Hub with R cylindrical hole bored H7 and with keyway UNI 6604 H7 (L) / Hub with unbored R hole (G) / Hubs with M and R cylindrical holes bored H7, with keyways UNI 6604 H7 and dynamically balanced hal
