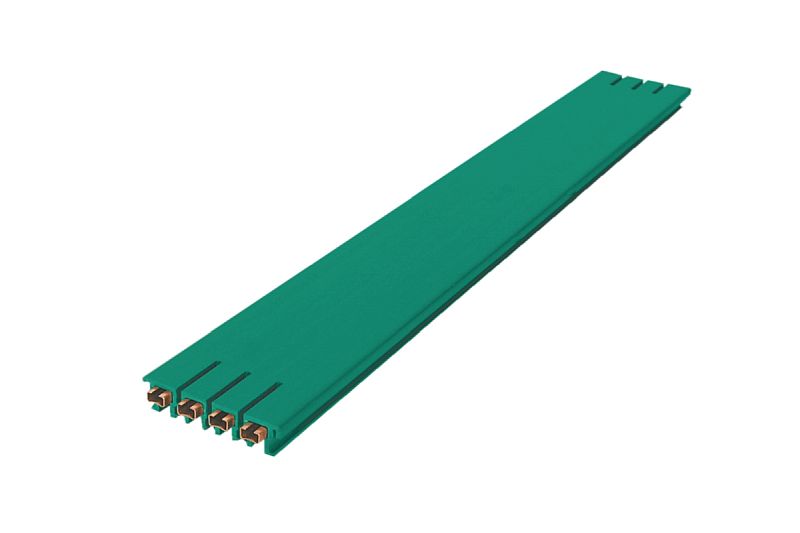

VKS & VKL
Plastkapslad strömbana
En kompakt beröringsskyddad strömbana med PVC-kapsling.
Med den platta konstruktionen är strömbanan idealisk att montera i trånga utrymmen t ex i livet på en travers-/telferbalk.
VKS10, med plats för max 10 poler är speciellt lämpad för överföring av kraft, manöver, signal- och datakommunikation till automatstyrda höglagerkranar och liknande.
Alla VKS och VKL-banor kan levereras med kurvor.
Klicka här för en videopresentation av VKS10.
Snabbfakta
- Poltal
- 3 - 10
- Märkström [A]
- 40 - 280
- Max spänning [V]
- 690
- Temp [°C ]
- -30 till +55
- IP-klass
- IP21
- Möjlig positionering
- Ja, till VKS 4, VKS 6
Ladda ner
Egenskaper
| VKS 3 | Poltal | Strömbelastning [A] vid 35°C | Max spänning [V] | Vikt [kg/m] | ||
|---|---|---|---|---|---|---|
| 80% Ed | 100% Ed | |||||
| VKS 3/60 HS | 3 | 60 | 690 | 1,221 | ||
| VKS 3/60 SS | 3 | 60 | 690 | 1,221 | ||
| VKS 3/100 HS | 3 | 100 | 690 | 1,454 | ||
| VKS 3/100 SS | 3 | 100 | 690 | 1,454 | ||
| VKS 3/120 HS | 3 | 120 | 690 | 1,589 | ||
| VKS 3/120 SS | 3 | 120 | 690 | 1,589 | ||
| VKS 3/140 HS | 3 | 140 | 690 | 1,724 | ||
| VKS 3/140 SS | 3 | 140 | 690 | 1,724 | ||
| VKS 4 | Poltal | Strömbelastning [A] vid 35°C | Max spänning [V] | Vikt [kg/m] | ||
|---|---|---|---|---|---|---|
| 80% Ed | 100% Ed | |||||
| VKS 4/60 HS | 4 | 60 | 690 | 1,459 | ||
| VKS 4/60 SS | 4 | 60 | 690 | 1,459 | ||
| VKS 4/100 HS | 4 | 100 | 690 | 1,693 | ||
| VKS 4/100 SS | 4 | 100 | 690 | 1,693 | ||
| VKS 4/120 HS | 4 | 120 | 690 | 1,828 | ||
| VKS 4/120 SS | 4 | 120 | 690 | 1,828 | ||
| VKS 4/140 HS | 4 | 140 | 690 | 1,956 | ||
| VKS 4/140 SS | 4 | 140 | 690 | 1,956 | ||
| VKS 5 | Poltal | Strömbelastning [A] vid 35°C | Max spänning [V] | Vikt [kg/m] | ||
|---|---|---|---|---|---|---|
| 80% Ed | 100% Ed | |||||
| VKS 5/60 HS | 5 | 60 | 690 | 2,058 | ||
| VKS 5/60 SS | 5 | 60 | 690 | 2,058 | ||
| VKS 5/100 HS | 5 | 100 | 690 | 2,292 | ||
| VKS 5/100 SS | 5 | 100 | 690 | 2,292 | ||
| VKS 5/120 HS | 5 | 120 | 690 | 2,427 | ||
| VKS 5/120 SS | 5 | 120 | 690 | 2,427 | ||
| VKS 5/140 HS | 5 | 140 | 690 | 2,549 | ||
| VKS 5/140 SS | 5 | 140 | 690 | 2,549 | ||
| VKS 6 | Poltal | Strömbelastning [A] vid 35°C | Max spänning [V] | Vikt [kg/m] | ||
|---|---|---|---|---|---|---|
| 80% Ed | 100% Ed | |||||
| VKS 6/60 HS | 6 | 60 | 690 | 2,202 | ||
| VKS 6/60 SS | 6 | 60 | 690 | 2,202 | ||
| VKS 6/100 HS | 6 | 100 | 690 | 2,436 | ||
| VKS 6/100 SS | 6 | 100 | 690 | 2,436 | ||
| VKS 6/120 HS | 6 | 120 | 690 | 2,571 | ||
| VKS 6/120 SS | 6 | 120 | 690 | 2,571 | ||
| VKS 6/140 HS | 6 | 140 | 690 | 2,693 | ||
| VKS 6/140 SS | 6 | 140 | 690 | 2,693 | ||
| VKS 10 | Poltal | Strömbelastning [A] vid 35°C | Max spänning [V] | Vikt [kg/m] | ||
|---|---|---|---|---|---|---|
| 80% Ed | 100% Ed | |||||
| VKS 10-4/ 60-6 HS | 4 | 60 | 690 | 2,310 | ||
| VKS 10-4/100-6 HS | 4 | 100 | 690 | 2,540 | ||
| VKS 10-4/120-6 HS | 4 | 120 | 690 | 2,660 | ||
| VKS 10-4/140-6 HS | 4 | 140 | 690 | 2,790 | ||
| VKS 10-5/ 60-6 HS | 5 | 60 | 690 | 2,450 | ||
| VKS 10-5/100-6 HS | 5 | 100 | 690 | 2,690 | ||
| VKS 10-5/120-6 HS | 5 | 120 | 690 | 2,810 | ||
| VKS 10-5/140-6 HS | 5 | 140 | 690 | 2,940 | ||
| VKS 10-6/ 60-6 HS | 6 | 60 | 690 | 2,300 | ||
| VKS 10-6/100-6 HS | 6 | 100 | 690 | 2,540 | ||
| VKS 10-6/120-6 HS | 6 | 120 | 690 | 2,640 | ||
| VKS 10-6/140-6 HS | 6 | 140 | 690 | 2,810 | ||
| VKS 10-7/ 60-6 HS | 7 | 60 | 690 | 2,450 | ||
| VKS 10-7/100-6 HS | 7 | 100 | 690 | 2,680 | ||
| VKS 10-7/120-6 HS | 7 | 120 | 690 | 2,810 | ||
| VKS 10-7/140-6 HS | 7 | 140 | 690 | 2,950 | ||
| VKS 10-8/ 60-6 HS | 8 | 60 | 690 | 2,590 | ||
| VKS 10-8/100-6 HS | 8 | 100 | 690 | 2,830 | ||
| VKS 10-8/120-6 HS | 8 | 120 | 690 | 2,960 | ||
| VKS 10-8/140-6 HS | 8 | 140 | 690 | 3,090 | ||
| VKS 10-9/ 60-6 HS | 9 | 60 | 690 | 2,740 | ||
| VKS 10-9/100-6 HS | 9 | 100 | 690 | 2,970 | ||
| VKS 10-9/120-6 HS | 9 | 120 | 690 | 3,110 | ||
| VKS 10-9/140-6 HS | 9 | 140 | 690 | 3,240 | ||
| VKS 10-9/200-6 HS | 9 | 200 (3) | 690 | 3,280 | ||
| VKS 10-9/240-6 HS | 9 | 240 (3) | 690 | 3,600 | ||
| VKS 10-9/280-6 HS | 9 | 280 (3) | 690 | 3,910 | ||
| VKS 10-10/ 60-6 HS | 10 | 60 | 690 | 2,880 | ||
| VKS 10-10/100-6 HS | 10 | 100 | 690 | 3,110 | ||
| VKS 10-10/120-6 HS | 10 | 120 | 690 | 3,250 | ||
| VKS 10-10/140-6 HS | 10 | 140 | 690 | 3,380 | ||
| VKS 10-10/200-6 HS | 10 | 200 (3) | 690 | 3,430 | ||
| VKS 10-10/240-6 HS | 10 | 240 (3) | 690 | 3,740 | ||
| VKS 10-10/280-6 HS | 10 | 280 (3) | 690 | 4,050 | ||
| VKL 3 - 5 | Poltal | Strömbelastning [A] vid 35°C | Max spänning [V] | Vikt [kg/m] | ||
|---|---|---|---|---|---|---|
| 80% Ed | 100% Ed | |||||
| VKL 3/30 HS | 3 | 30 | 400 | 1,104 | ||
| VKL 3/30 SS | 3 | 30 | 400 | 1,104 | ||
| VKL 4/30 HS | 4 | 30 | 400 | 1,180 | ||
| VKL 4/30 SS | 4 | 30 | 400 | 1,180 | ||
| VKL 5/30 HS | 5 | 30 | 400 | 1,256 | ||
| VKL 5/30 SS | 5 | 30 | 400 | 1,256 | ||
